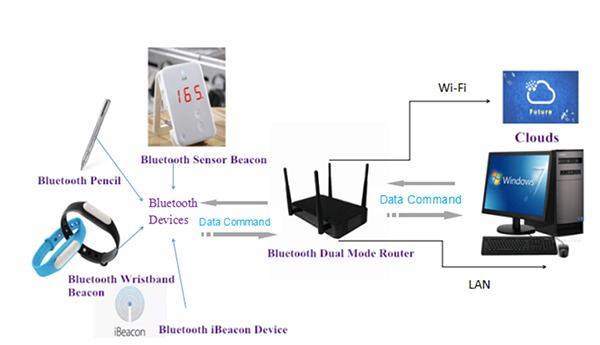

BLE 5.0 intelligent gateway can avoid scanning steps, automatically connect target slave devices, save scanning and connection time. The UUID of data transmission can be set in advance to realize data transmission and speed up the transmission efficiency. It makes the connection and transmission between gateway and ble slave more efficient and intelligent.
       The gateway can connect 20 ble slave devices at the same time, and each link transmits 2KB / s data. Support to customize various filtering methods of target ble devices, support to customize a variety of data formats to upload to the server.
       It can be used in wireless teaching, sensor data acquisition, personnel information management, public transportation, medical and other fields.
       With its excellent performance in low power consumption and low cost, ble technology has occupied a place in the development of the Internet of things. At present, electronic devices using ble technology can be seen everywhere, and have been fully integrated into the life of ordinary people.
       At present, the gateway, an important core component of the Internet of things, is mainly assumed by the mobile phone. However, due to the particularity of the mobile phone, it can not be used to complete the gateway function in many occasions. Therefore, Chongqing Jinou technology is launching a ble gateway device, which is used in a wider range of environments.

    Characteristic

    Data format customization
    Upload the server through customized data format
    Automatic networking without induction
    The intelligent gateway eliminates the scanning step, automatically identifies the nearby Bluetooth devices, and directly connects with the target device
    View data remotely
    Through the intelligent gateway, the devices can synchronize their own status in real time and support remote viewing at any time

    Technical specifications

    Support point to multipoint wireless connection
    10M/100M Adaptive network
    Automatically assign IP address
    Support Bluetooth data encryption
    Embedded Linux operating system
    400MIPS High performance processor
    Average power consumption:120mA@12V
    Overall dimension: 20cm * 12cm * 4cm (excluding antenna)

    Bluetooth profile

    Bluetooth 5.0 BLE
    Class2 bluetooth modular
    External antenna
    Frequency range: 2.402G ~ 2.480GHz
    Implementation of Bluetooth protocol: LC、LM、L2CAP、GATT、SDP、RFCOMM
    Supported network protocols:TCP/IP、HTTP、FTP、ARP、DHCP、PPP etc.
    Authentication: Support Bluetooth security authentication

    网络

    RJ45 Connector (optional WiFi)
    10M/100M Self-adaption
